Base 330-512 MHz 0dB (N) SCAN Antenna

BASE004 330-512 MHz - Split over 7 different bands and one self made

UHF 450 MHz base station antennas with integrated multipurpose mounting bracket comes with a generous bandwidth which reduces the need for multiple antennas both in stock and on installation sites.

Dansk fremstillet kvalitets antenne - ca- 10 dages levering fra ordre dato.

Frequency 330-512 MHz

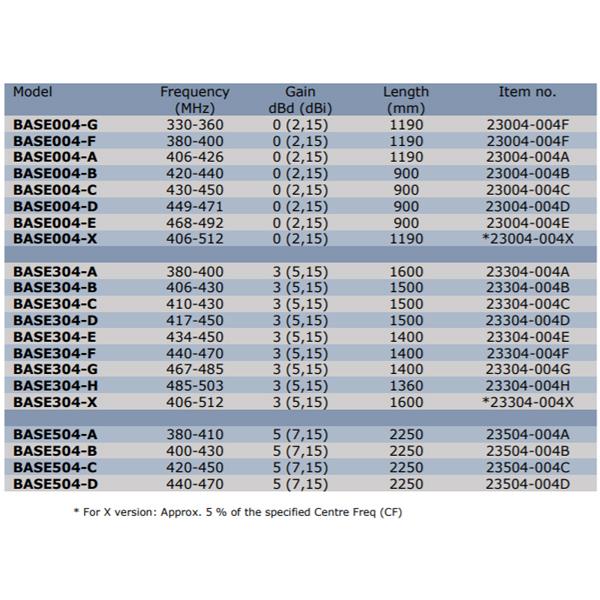

330 - 360 MHz, 330 - 406 MHz, 380 - 400 MHz, 406 - 426 MHz, 420 - 440 MHz, 430 - 450 MHz, 449 - 471 MHz, 468 - 492 MHz, 512 MHz (A/B/C/D/E/F/G/X)
Antenna Type Half Wave Dipole
Impedance 50 ohm
Gain 0 dBd, 2,1 dBi,
Max Power 300 Watt

Mounting Type Fixed Tube Mounting Bracket. Stainless Steel Mounting Hardware included.
Mounting Place vertical or horizontal mast tube (Ø 30 – 60 mm)
Connector N-female
Weigh Max 1,1 kg
Ingress protection IP66
Survival wind speed 55 m/s (200km/h)
Operating temperature -55C to +70C (IEC 60068-2-1, IEC 60068-2-2)
