GF 2-0AIR - 118-137 MHz SCAN ANtenna

Antenne bygget specielt til aflytning af Fly båndet.
- 118-137 MHz 0 dB/2,15dBi

Electrical specifications
FREQUENCY 118 - 137 MHz (International AIR-band)
BANDWIDTH 19 MHz
IMPEDANCE 50 ohm
VSWR < 1.5
POLARISATION Vertical
GAIN 3 dB (Marine), 0 dBd, 2.1 dBi
MAX. INPUT POWER 100 W
ANTISTATIC PROTECTION Direct Ground

Mechanical specifications
COLOR White and chrome
HEIGHT Approx. 1440 mm
WEIGHT 410 g
MOUNTING On 1" threaded pole (G1"-11 thread) with Revolving Nut Kit or on optionally brackets
MOUNTING PLACE On mast or deck
MATERIALS PU-painted glassfibre, copper, PTFE and chrome plated solid brass
SURVIVAL WIND SPEED 55 m/s (125 mph)
OPERATING TEMPERATURE -55C to +70C (IEC 60068-2-1, IEC 60068-2-2)

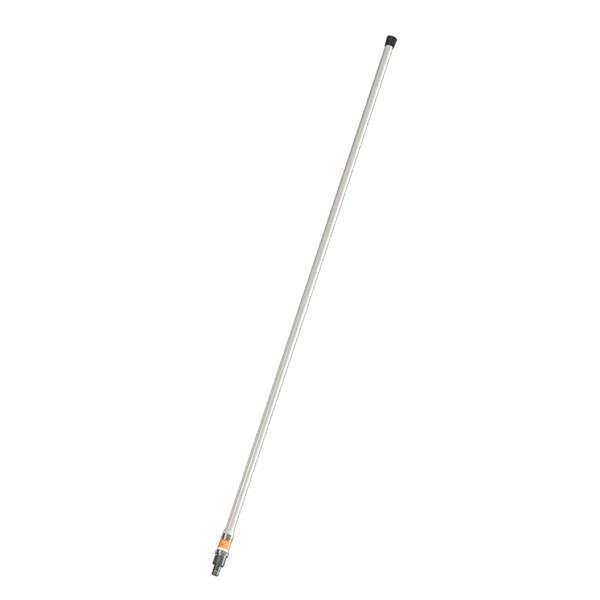

Vare nr. 10021 er uden omløber Nr. 20843 som er vist på foto
