GPS Antenne 5V - Sort

GPS Antenne 5V - Sort
Pris ved 1 Stk
DKK
578,00
Varenummer
46090

Leveringstid
1-5 dage

Levering
Fra 75 DKK

Returret
14 dages returret

Dansk produceret GPS antenne

GNSS02 - GPS antenne med FME stik

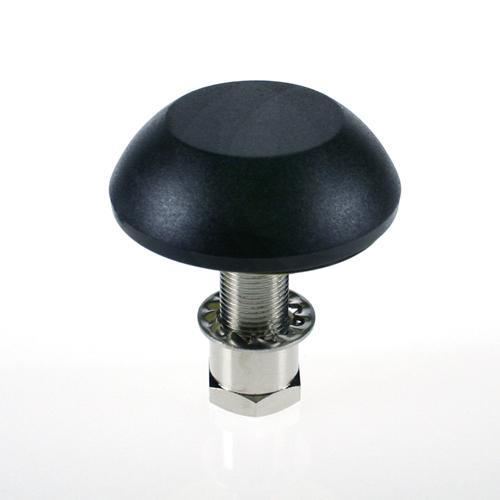

Aktiv GPS antenne til montering direkte i taget eller evt. med et beslag.

ANTENNA TYPE
Mobile active GPS antenna for roof or bracket mounting (Bolt-on type).
* NON-CORROSIVE
* WATER PROOF
* LOW PROFILE DESIGN

FREQUENCY 1575,42 MHz
IMPEDANCE Nom. 50 ohm
POLARISATION RHC (Right Hand Circular)
GAIN (LNA) Nom. 26 dB
NOISE FIG. Typ. 1.35 dB
POWER SUPPLY + 3,0 - 5,5 VDC (20 mA )
VSWR < 2.0
DIMENSIONS Ø 47 x 15 mm (51 mm including threaded stud)
COLOUR Black
MOUNTING-HOLE Ø 13 mm
WEIGHT Approx. 0,060 kg
MOUNTING On horizontal surface or bracket with free sight to satellites
MATERIAL ABS, stainless steel and brass IP66 Classified
TEMPERATURE -30 - +60g C
MOUNT TYPE Bolt-on + adhesive tape for effective sealing
CABLE No connection cable supplied
CONNECTOR FME (m) in base

Download Data
