HF8000 TX/RX

HF8000 er designet til HF/SSB båndet og bygget til at kunne bruges under ekstreme forhold til søs

HF8000 TX/RX

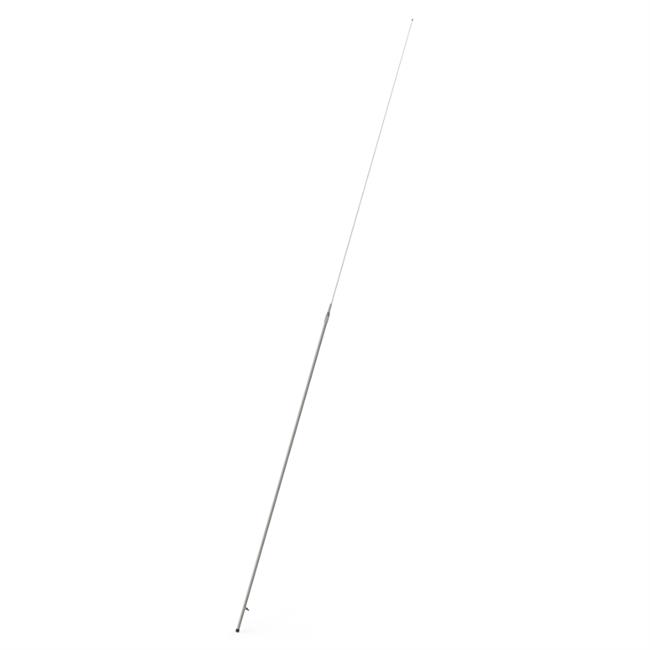

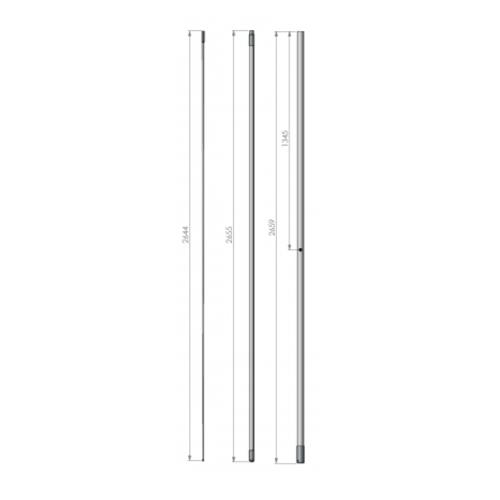

8 m three-part LF/HF Fibreglass Antenna
•High quality 8 m high HF antenna for professional use
•Designed for GMDSS installations
•Rugged design
•Chrome plated solid brass joints
•Designed for rail mounting

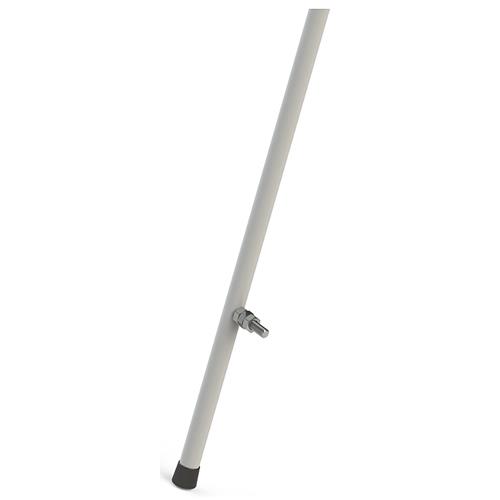

•Side fed via open single wire
•Full omni-directional radiation pattern


Electrical Specifications:
Frequency 1.4 - 30 MHz (MF and HF)
Polarisation Vertical
Max. Power 1200 W PEP
Static Capacitance 100 pF
Insulation Resistance 10 GOhm
Electric Length 6790 mm


Mechanical Specifications:

Color White
Height 8 m
Diameter Ø 40 to Ø 5 mm

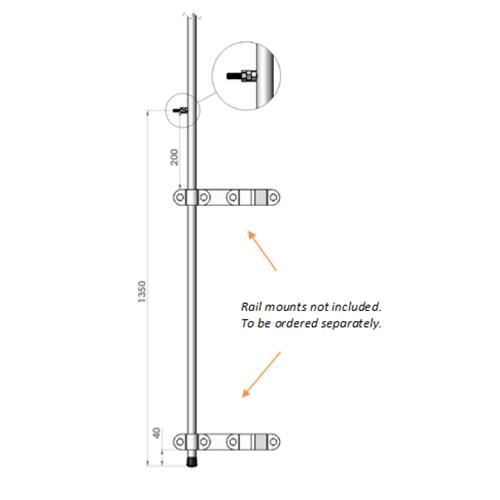

Mounting Rail Bracket Kit (Large) P/N 10000-163 (Not supplied!)
Materials PU-painted heavy duty glass-fibre tubes and chromed solid brass
Survival Wind Speed 55 m/s
Operating temperature -40C to +60C
Connector 1 Screw terminal
Cable No cable supplied (Use open single wire)
Mounting place On rail or pole (Ø 30 - 90 mm)
Mounting Instruction Supplied
