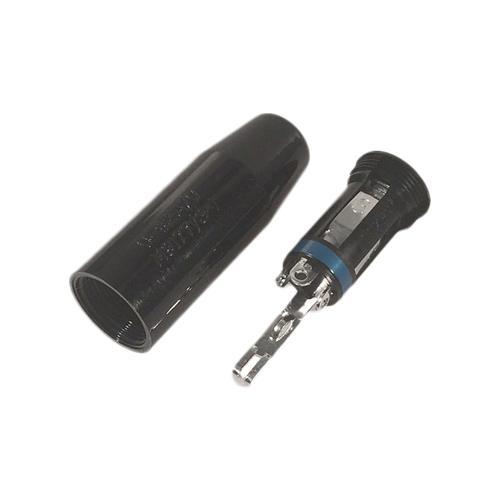

NEXUS TJ-102

Jack female Amphenol NEXUS TJ-102 - 7,1mm

Specification:
Conductors : 4
Application : Ruggedized Commercial / Military
Overall Width :.828 in
Overall Height : .828 in
Overall Length : 2.312 in
Contact Diameter : .285 in
Shell Material : Plastic
Contact Material : Nickel Plated Beryllium Copper
Standard : MIL-C-9177
Alternate P/N : M9177/3-1 / U-92A/U
Solder Contact Terminals : Pre-tinned over Nickel Plating
Contact Resistance : < .02 O
Insulation Resistance : >1,000 mO
Dielectric Withstanding Voltage (RMS) : > 500 V
Insertion Force Maximum : 13 lb
Withdrawal Force : 6 to 10 lb
