SIRIO Pisk 5/8 - SMA 47/135 VHF

SIRIO SMA 47/135 Dual-Band: 6m And 2m Bands pisk til VHF båndet

- MK-SP stål antenne med stor fjeder Til antennefødder med med vingebolt.
- Kan tilpasses til 46.5 … 61.5 MHz & 135 … 175 MHz

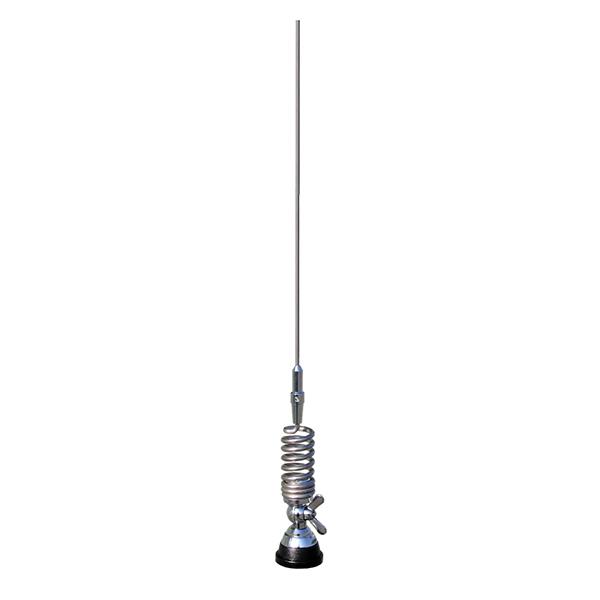

! Løs pisk uden fod og ikke som vist på billede !
Klippediagram medfølger

Features:
Up-Grade: frequency extended
Mobile antenna, Dual-band
Omnidirectional
6m band Unity-gain, 2m band Low-gain
SM 48/140: Black fiberglass conic whip
SMA 47/135: 17/7 PH tapered stainless steel whip
180° inclination and adjustable whip, detachable for car-washes access
Black chrome version available
Wide range of optional mounting bases available
Magnetic mount version available

Electrical Data
Type:
1/4 λ for 46.5...61.5 MHz band
5/8 λ for 135...175 MHz band
Frequency range:
SMA 47/135: tunable 46.5...61.5MHz & 135...175 MHz
Impedance: 50Ω
Radiation (H-plane): 360° omnidirectional
Polarization: linear vertical
Gain:
0 dB ref. to a λ /4 whip for 46.5...61.5 MHz band
2 dB ref. to a λ /4 whip for 135...175 MHz band
Bandwidth @ SWR ≤ 1.5:
SM 48/140: ≥ 2 MHz @ 47.5 MHz,≥ 2.5 MHz @ 140 MHz
SMA 47/135: ≥ 2.5 MHz @ 46.5 MHz,≥ 3.4 MHz @ 135 MHz
SWR @ res. freq.: ≤ 1.3 both bands
Max Power (CW) @ 30°C: 100 Watts
Standard Mount: "S"

Mechanical Data
Materials:
SMA 47/135: Stainless Steel 17/7 PH, Chromed Brass, Nylon
Height (approx.):
SMA 47/135: 1505 mm
Weight (approx.): 550 gr
Mounting Hole: Ø 19 mm
