Beskrivelse

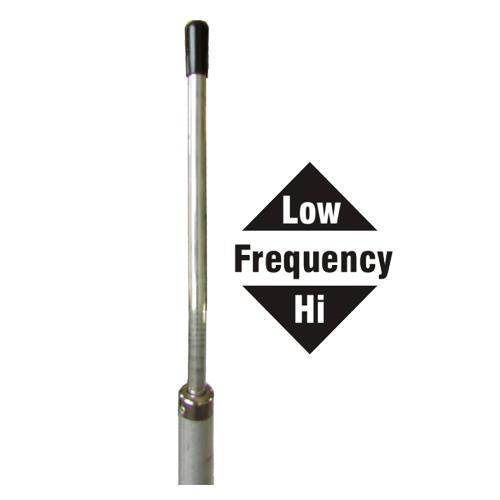

Base antenne 27 Mhz NEW Tornado
27 MHz - SIRIO NEW Tornado
- Sirio 5/8 aluminium antenne, til den som ønsker en antenne, med lidt ekstra performance .
Product Number: P/N: 2100501.00 NEW TORNADO
Electrical Data:
Type: 5/8 λ ground plane
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 27 ... 30 MHz Tunable
Systems: 10m-HAM
Gain: 1.2 dBd, 3.35 dBi
Bandwidth: ≥ 1.3MHz @ SWR ≤ 2
Max Power: 1000 Watts (CW) continuous
3000 Watts (CW) short time
Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Aluminium, Brass, Galvanized steel, Thermoplastic UV stabilized
Height (approx): 7230 mm / 23.72 ft
Weight (approx): 2900 gr / 6.39 lb
Mounting type: On-Mast
