Base Antenne 27 MHz - Sirio SY-4
Sirio SY-4 - Dipolantenne som køre på 27 MHz-båndet med Gamma Match System.

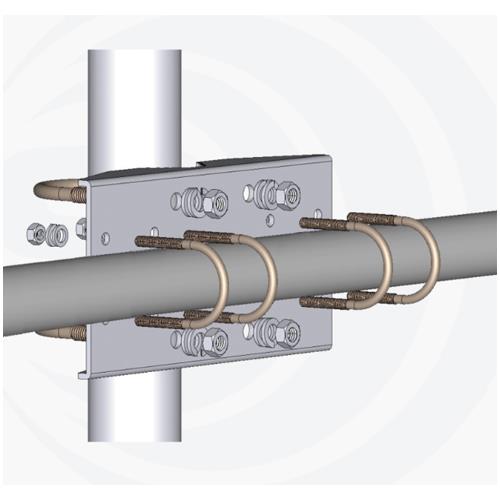

SY-4 er produceret i anticorodal aluminium og leveres med Boom og bøjle beslag til
montering på mast. Beslaget er med et hurtig montage Systemet som er fremstillet af trykstøbt metal for at opnå maksimal styrke og robust hed.
Radiale/Pisken er jordet, og leveres med gummitylle for en perfekt mest muligt tæthed..
Features: - Base station antenna
- High power handling capability
- Factory tuned at mid-band

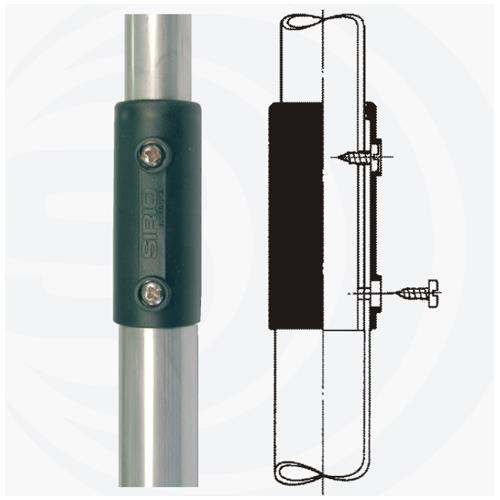

- Whip equipped whit waterproof jointing sleeve
- Made of aluminium alloy 6063 T-832
Electrical Data
- Type: Dipole
- Frequency range: 26,5-30 MHz
- Impedance: 50 ohm
- Radiation (H-plane):
Horizontal mounting: Directional
Vertical mounting: Omnidirectional
- Polarization: linear horizontal
- Gain: 11 dBd, 13.15 dBi
- Max. power: 1000 Watts (CW) continuous
3000 Watts (CW) short time
- Feed system / position: Gamma match / center
- Connector: UHF-female
Mechanical Data
- Materials: Aluminium, Steel, Nylon
- Wind surface: 0.07 m2
- Dimensions (approx.): 5846x4030x100 mm
- Boom length / diameter: 4030 mm / 33 mm
- Max. element length (approx.): 5846 mm @ 26.5 MHz
- Turning radius (approx.): 3700 mm
- Weight (approx.): 6100 gr
- Mounting mast: Ø 35-50 mm
