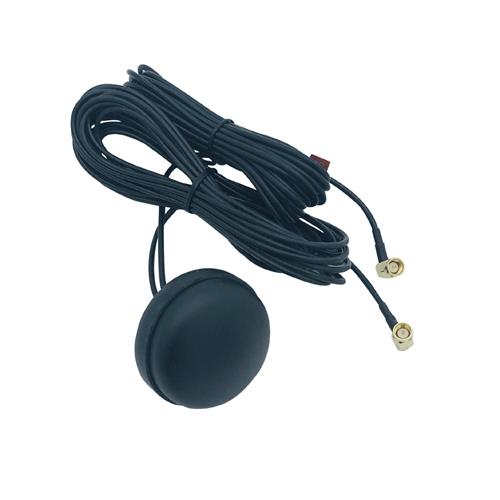

Combi GPS + 4G LTE 700-2700mhz GPS - 5 M. RG174 / SMA male R/A 4G/LTE - 5 M. RG316 / SMA male R/A
Low Profile Puck Antenna
Designed for use in GPS & 4G LTE (700-2700MHz)
•Supports GPS & GSM/3G , 4G LTE
•Fully Waterproof when mounted - IP67 waterpfoof
•For indoor or outdoor use - UV resistant
•Groundplane Independent
•5 M. RG316/RG174 Cabel / SMA R7A male.
Frequency: 700-960/1710-2170/2500-2700MHz (E-GSM / 4G / LTE / GPRS)
Gain: 2 / 2 dBi
Impedance: Nom. 50 ohm
Polarization: Linear
VSWR: < 2.0 at frequency resonance
Max power: 10 Watt
Material: ABS, PTFE, brass and PCB
Mount type: Bolt-on
Cable / Connector: 500 mm RG316 and SMA R/Av (m)
Frequency Range : 1575.42MHz
Polarization : RHCP (right hand circular polarization)
Noise figure : 1.5 max.
Attenuation : 20dB min. at F0 +/- 50MHz
Bandwidth : 10MHz
V.S.W.R : 2.0 Max
Impedance : 50 Ω
Gain : LNA 30 dB
Power consumption : 2.7 to 5.5VDC/28mA
Cable and connector : 500 mm RG174 and SMA R/Av (m)
Dimensions: 54.7 x 23.3mm
Kg : 0,167
